dot: Command Line Drawing Tool

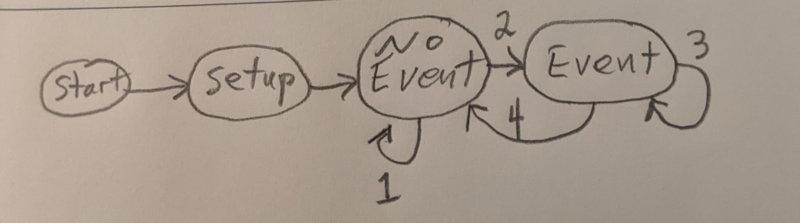

I wanted to represent a Finite State Machine (FSM) for my sump pump monitor. Grabbing my coding stick, I create the FSM on paper in my project journal. Then I take a photo of this and I’m done.

But not really done because the photo is  3.3 MB. I download it from Google Photos and open it in my Macbook using Preview. I select the portion of the page with the selection tool and copy this part of the image to the clipboard and then I use Preview’s “New from Clipboard” command to create a PNG image file. This file is still 1.7MB.

Now I am glad I installed ImageMagick so I can easily reduce the size of photos.

convert 'spm\_states\_hand\_drawn.png\[800x600\]' \

After that I have this 186  KB file: spm_states_hand_drawn1.png

But I am not satisfied with this.

What was that command line utility that I used for drawing graphs when I was working with RDF? Ah, it was "dot".  The command is dot and it is contained in the Graphviz package. The site has source and documentation. And there is a Homebrew installation:

$ brew install graphviz

I did this and it works just fine. I bow in the general direction of Homebrew.

So dot allows me to define the FSM in code and create a nice graph for inclusion in documentation.

The Graphviz package implements several languages for drawing graphs. The dot language is for drawing directed graphs. Just what you need for a FSM. The drawing is coded into a file then compiled with the dot command, outputting the kind of  image you want.

The FSM concepts from the hand drawing are coded into the dot language:

digraph SPM_states {

Start -> Setup
Setup -> NoEvent
NoEvent -> NoEvent [ label="  1. A0 < noise"];
NoEvent -> Event [ label="  2. A0 > noise"];
Event -> Event  [ label="  3. time < limit"];
Event -> NoEvent  [ label="  4. time > limit"];

I save the statements as file and run this command to produce an image file:

$ dot -Tpng -o spm_states.png

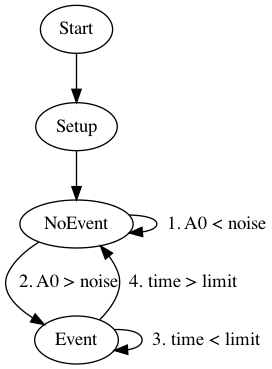

Now I have this 26 KB PNG file:


Perfect for embedding in a document. But what if I am using Markdown to compose my documentation? Check this out: mermaid: text tool for graphs
